Aluminum Lug Short Compression Cable to Pad

Category: Compression Connectors
Hits: 755

CATALOG

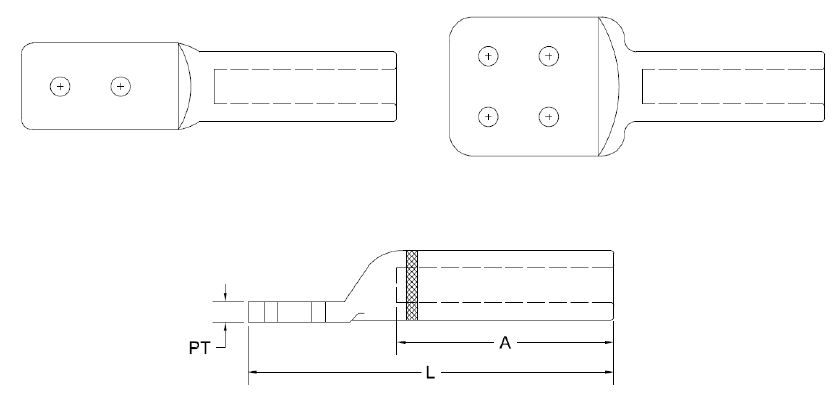

NUMBER		 CONDUCTOR  RANGE DIE REF.  DIMENSIONS  IN INCHES
AAC ACSR L A PT
ACC2PN2 #2 (7) #2 (6/1) 0.640 5.000 2.000 0.250
ACC0PN2 1/0 (7), (19) - 0.840 6.500 2.000 0.310
ACC0RPN2 - 1/0 (6/1) 0.840 6.500 2.000 0.310
ACC00PN2 2/0 (7), (19) - 0.840 6.500 2.000 0.310
ACC00RPN2 - 2/0 (6/1) 0.840 6.500 2.000 0.310
ACC000PN2 3/0 (7), (19) - 0.840 6.500 2.000 0.310
ACC0000PN2 4/0 (7), (19)  3/0 (6/1)  0.840 6.500 2.000 0.310
ACC0000P3N4 0.840 6.500 2.000 0.310
ACC0000RPN2 -  4/0 (6/1)  0.840 6.500 2.000 0.310
ACC0000RP3N4 0.840 6.500 2.000 0.310
ACC266PN2 266.8 (7), (19)  -  1.125 6.500 3.750 0.380
ACC266P3N4 1.125 6.500 3.750 0.310
ACC300PN2 300  (7), (19)  266.8 (18/1)  1.125 6.500 2.000 0.380
ACC300P3N4 1.312 6.500 2.000 0.310
ACC266RPN2 -  266.8 (26/7)
300 (18/1) 		 1.125 6.500 2.000 0.380
ACC300RP3N4 1.312 6.500 2.000 0.310
ACC336PN2 336.4  (19), (37)  336.4 (36/1)  1.125 7.500 3.000 0.380
ACC336P3N4 1.312 7.500 3.000 0.310
ACC350PN2 350  (19), (37)  300 (26/7)
336.4 (18/1) 		 1.125 7.500 3.000 0.380
ACC350P3N4 1.312 7.500 3.000 0.310
ACC397PN2 397.5 (19)
400 (19), (37) 		 336.4 (30/7), (26/7)
397.5 (18/1), (36/1) 		 1.125 7.500 3.000 0.380
ACC400P3N4 1.312 7.500 3.000 0.310
ACC477PN2 477  (19), (37)  397.5 (26/7)  1.312 8.750 3.000 0.410
ACC477P3N4 1.312 8.750 3.000 0.310
ACC500PN2 500 (19), (37)  477 (18/1),  (36/1)  1.312 7.750 3.000 0.410
ACC500P3N4 1.312 7.500 3.000 0.310
ACC550PN2 550 (61)
556.5   (19), (37) 		 477 (26/7)  1.312 7.750 3.000 0.410
ACC556P3N4 1.312 7.500 3.000 0.310
ACC600PN2 600 (61)  556.5 (18/1),  (36/1)  1.500 7.750 4.000 0.500
ACC600P3N4 1.500 8.250 4.000 0.410
ACC636PN2 636  (37), (61)
650 (61) 		 556.5  (26/7)
605 (36/1)
636 (18/1),  (36/1) 		 1.500 7.750 4.000 0.500
ACC650P3N4 1.500 8.250 4.000 0.410
ACC700PN2 700 (61), (91)  605 (26/7),  (54/7)
666.6 (36/1) 		 1.500 7.750 4.000 0.500
ACC700P3N4 1.500 8.250 4.000 0.410
ACC636PN2 -  636 (26/7)
715.5 (54/7) 		 1.500 7.750 4.000 0.500
ACC715P3N4 1.500 8.250 4.000 0.410
ACC750PN2 750 (37), (61), (91)  762 (20/7)
666 (54/7) 		 1.500 7.750 4.000 0.500
ACC750P3N4 1.500 8.250 4.000 0.410
ACC795PN2 795 (37), (61)
800 (61)  		 715.5 (54/7)   1.843 9.875 4.000 0.750
ACC800P3N4 1.843 9.500 4.000 0.555
ACC715P4N4 1.843 10.125 4.000 0.500
ACC795P3N4 - 715.5  (26/7)
795 (36/1)		 1.843 9.500 4.000 0.555
ACC795P3N4 - 795 (45/7) 1.843 9.500 4.000 0.555
ACC874P3N4 874.5  (37), (61)
900 (61), (91) 		 795  (26/7), (54/7)
874.5 (36/1) 		 1.843 9.500 4.000 0.555
ACC900P4N4 1.843 10.125 4.000 0.500
ACC954P3N4 954 ( (37), (61)  900 (45/7)  1.843 9.500 4.000 0.555
ACC954P4N4 1.843 10.125 4.000 0.500
ACC1000P3N4 1000  (61), (91)
1033.5 (37), (61) 		 900 (54/7)
954 (45/7) 		 1.843 9.500 4.000 0.555
ACC1033P4N4 1.843 10.125 4.000 0.500
ACC1113P4N4 1113 (61) 954 (54/7)
1033.5 (45/7)		 2.125 11.125 5.000 0.500
ACC1192P4N4 1192.5  (61) 1033.5 (54/7)
1113 (45/7)		 2.125 11.125 5.000 0.500
ACC1272P4N4 1272 (61) 1113 (18/1), (54/19)
1192.5 (45/7)		 2.375 11.375 5.000 0.750
ACC1272RP4N4 - 1272 (45/7) 2.375 11.375 5.000 0.750
ACC1431P4N4 1431 (61) 1272 (18/1), (45/7), (54/19)
1351.5(54/7)		 2.375 11.375 5.000 0.750
ACC1534P4N4 1534.4  ACAR 1351.5 (54/19)
1431 (45/7)		 2.375 11.375 5.000 0.750
ACC1590P4N4 1590 (61) 1431 (18/1), (54/19)
1510.5 (54/7)		 2.375 11.375 5.000 0.750
ACC1700P4N4 1700 (127), (169) 1510 (54/19)
1590 (45/7)		 2.375 11.375 5.000 0.750
ACC1590RP4N4 - 1590 (18/1),  (54/19) 2.375 11.375 5.000 0.750
ACC2000P4N4 2000 - 2.937 15.625 8.000 1.000
ACC2156RP4N4 - 2156 (84/19) 2.937 14.625 7.000 1.000
ACC2500P4N4 2500 (91), (127) - 2.937 14.625 7.000 1.000
ACC3500P4N4 3500 (127) - 2.937 14.625 7.000 1.000
