Tensile Strength
5/8" - 11UNC = 13550lbs
3/4" - 10UNC = 20050lbs
- Bolt meet the requirements of CSA standard C83-96
- per ASTM A370
- CSA 83.66-96 Specification

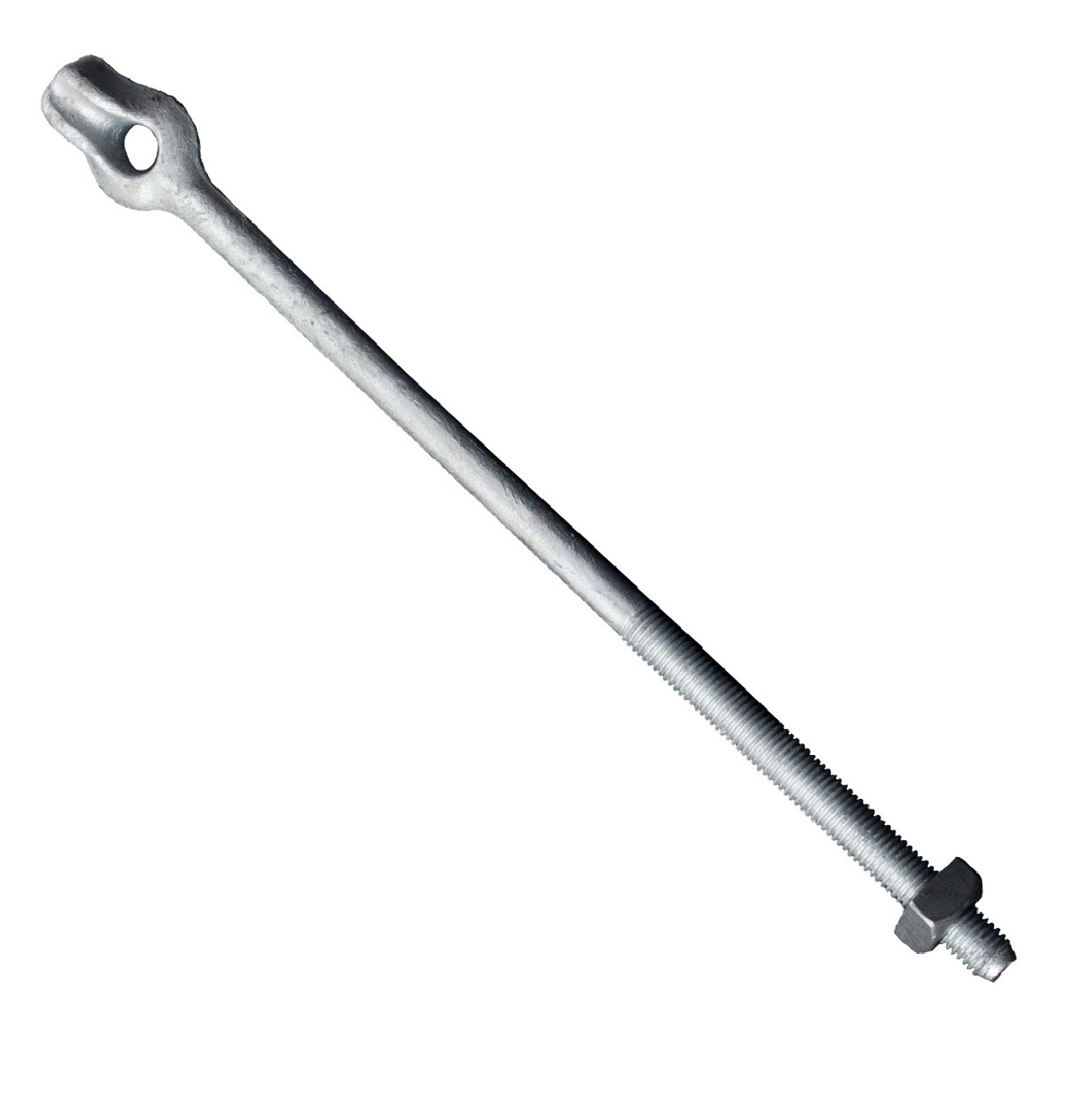

- Forged Thimbleye offers smooth radius for loop type deadend attachment
- Includes one square nut
- Cone point aids installation through wood and reduces thread damage
- Rolled Threads
- Galvanized steel per CSA G164-M
| Catalog No. | Bolt Dia. | Length | Eye Dimensions | Approx. Ship Wt. Per Each (lbs) | ||
| Bolt | Thread | |||||
| inch | inch | inch | ||||
| Straight Type | ||||||
| TEB5808 | 5/8 | 8 | 4 | 9/16 x 11/16 | 1.12 | |
| TEB5810 | 10 | 4 | 1.48 | |||
| TEB5812 | 12 | 6 | 1.76 | |||
| TEB5814 | 14 | 6 | 1.88 | |||
| TEB5816 | 16 | 6 | 1.92 | |||
| TEB5818 | 18 | 6 | 2.00 | |||
| TEB5820 | 20 | 6 | ||||
| TEB3408 | 3/4 | 8 | 4 | 11/16 x 13/16 | 2.08 | |
| TEB3410 | 10 | 4 | 2.28 | |||
| TEB3412 | 12 | 6 | 2.44 | |||
| TEB3414 | 14 | 6 | 2.64 | |||
| TEB3416 | 16 | 6 | ||||
| TEB3418 | 18 | 6 | ||||
| TEB3420 | 20 | 6 | ||||
| Angle Type | ||||||
| TAEB5808 | 5/8 | 8 | 4 | 9/16 x 11/16 | 1.12 | |
| TAEB5810 | 10 | 4 | 1.48 | |||
| TAEB5812 | 12 | 6 | 1.76 | |||
| TAEB5814 | 14 | 6 | 1.88 lbs | |||
| TAEB5816 | 16 | 6 | 1.92 | |||
| TAEB5818 | 18 | 6 | ||||
| TAEB5820 | 20 | 6 | ||||
| TAEB3410 | 3/4 | 10 | 4 | 11/16 x 13/16 | 2.28 | |
| TAEB3412 | 12 | 6 | 2.44 | |||
| TAEB3414 | 14 | 6 | 2.64 | |||
| TAEB3416 | 16 | 6 | ||||
| TAEB3418 | 18 | 6 | ||||
| TAEB3420 | 20 | 6 | ||||
