Ground Rods

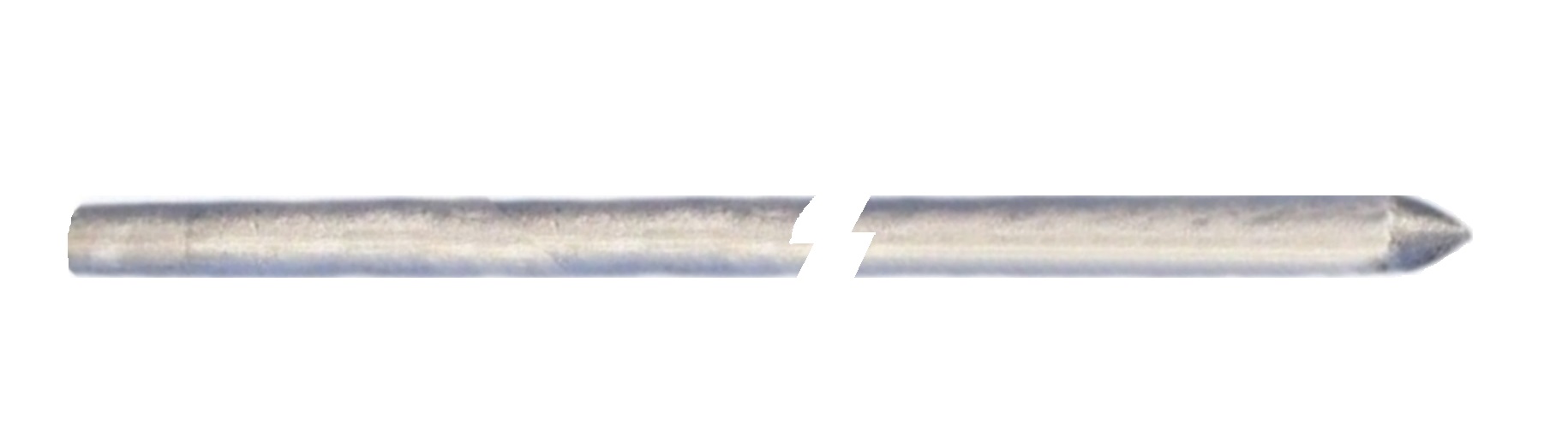

Galvanized Ground Rod

HOT DIP Galvanized per ASTM A123, CSA G164, conical point

Catalog No.	Rod Size Nominal Diameter x Length	Thread Size	Weight per 100
Catalog No.	inch	Thread Size	Lbs.
GGR1272	1/2''x6'	1/2''-13	316
GGR1296	1/2''x8'	1/2''-13	421
GGR12120	1/2''x10'	1/2''-13	527
GGR1272	1/2''x6'	9/16''-12	410
GGR1296	1/2''x8'	9/16''-12	546
GGR12120	1/2''x10'	5/8''-11	682
GGR5872	5/8''x6'	5/8''-11	508
GGR5896	5/8''x8'	5/8''-11	678
GGR58120	5/8''x10'	3/4''-10	847
GGR3472	3/4''x6'	3/4''-10	774
GGR3496	3/4''x8'	3/4''-10	992
GGR34120	3/4''x10'	3/4''-10	1040
GGR01120	1''x10'	1''-8	2248

Copper Clad Ground Rod

Per ANSI & CSA STDS
99.9% Pure Electrolytic copper coating
Min coating - 0.01 inch

Catalog No.	Rod Size Nominal Diameter x Length	Thread Size	Weight per 100
Catalog No.	inch	Thread Size	Lbs.
CCGR1272	1/2''x6'	1/2''-13	316
CCGR1296	1/2''x8'	1/2''-13	421
CCGR12120	1/2''x10'	1/2''-13	527
CCGR1272	1/2''x6'	9/16''-12	410
CCGR1296	1/2''x8'	9/16''-12	546
CCGR12120	1/2''x10'	5/8''-11	682
CCGR5872	5/8''x6'	5/8''-11	508
CCGR5896	5/8''x8'	5/8''-11	678
CCGR58120	5/8''x10'	3/4''-10	847
CCGR3472	3/4''x6'	3/4''-10	774
CCGR3496	3/4''x8'	3/4''-10	992
CCGR34120	3/4''x10'	3/4''-10	1040
CCGR01120	1''x10'	1''-8	2248

Copper Clad Ground Rod SECTIONAL (threaded on both ends)

Per ANSI & CSA STDS
99.9% Pure Electrolytic copper coating
Min coating - 0.01 inch

Catalog No.	Rod Size Nominal Diameter x Length	Thread Size	Weight per 100
Catalog No.	inch	Thread Size	Lbs.
CCGR1272S	1/2''x6'	1/2''-13	316
CCGR1296S	1/2''x8'	1/2''-13	421
CCGR12120S	1/2''x10'	1/2''-13	527
CCGR1272S	1/2''x6'	9/16''-12	410
CCGR1296S	1/2''x8'	9/16''-12	546
CCGR12120S	1/2''x10'	5/8''-11	682
CCGR5872S	5/8''x6'	5/8''-11	508
CCGR5896S	5/8''x8'	5/8''-11	678
CCGR58120S	5/8''x10'	3/4''-10	847
CCGR3472S	3/4''x6'	3/4''-10	774
CCGR3496S	3/4''x8'	3/4''-10	992
CCGR34120S	3/4''x10'	3/4''-10	1040
CCGR01120S	1''x10'	1''-8	2248
