CACBL CACBT CACB

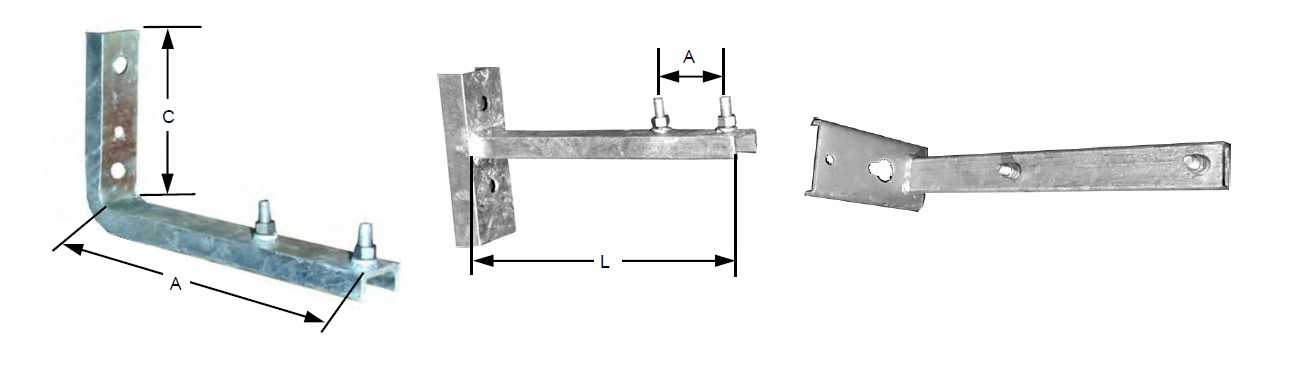

| CUTOUT - ARRESTER COMBINATION BRACKETS | |||||||
| Catalog No. | A | C | Shipping Wt. (100 pcs) | Std Pkg. | |||
| inch | mm | inch | mm | lbs | kg | ||
| CACBL0608 | 6 | 152 | 8 | 222 | 300 | 136,08 | 20 |
| CACBL83408 | 8-3/4 | 222 | 8 | 222 | 380 | 172,37 | 25 |
| CACBL123408 | 12-3/4 | 324 | 8 | 222 | 450 | 204,12 | 10 |
| CUTOUT - ARRESTER COMBINATION BRACKETS | |||||||
| Catalog No. | L | A | Shipping Wt. (100 pcs) | Std Pkg. | |||
| inch | mm | inch | mm | lbs | kg | ||
| CACBT06specify | 6 | 152 | specify | specify | 300 | 136,08 | 5 |
| CACBT1312314 | 13-1/2 | 343 | 3-1/4 | 83 | 600 | 272,16 | 6 |
| CACBT18314 | 18 | 457 | 3-1/4 | 83 | 640 | 290,30 | 4 |
| CUTOUT - ARRESTER COMBINATION BRACKETS | |||||||
| Catalog No. | L | A | Shipping Wt. (100 pcs) | Std Pkg. | |||
| inch | mm | inch | mm | lbs | kg | ||
| CACB1910 | 19 | 483 | 10 | 254 | 360 | 163,29 | 5 |
| CACB231213 | 23-1/2 | 597 | 13 | 343 | 420 | 190,51 | 5 |
