Aluminium Welded Bus Support to Bolt Circle

Category: Welded Connectors
Hits: 1771

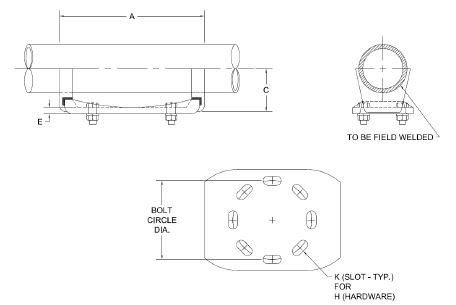

 3” BOLT CIRCLE BASES
CATALOG NUMBER I.P.S. SIZE DIMENSIONS (INCHES)
A C E K H
AWBS12BC3 0.500 6.500 2.000 0.375 0.563 .500 x 1.000
AWBS34BC3 0.750 6.500 2.000 0.375 0.563 .500 x 1.000
AWBS1BC3 1.000 6.500 2.000 0.375 0.563 .500 x 1.000
AWBS54BC3 1.250 6.500 2.250 0.375 0.563 .500 x 1.000
AWBS32BC3 1.500 6.500 2.500 0.375 0.563 .500 x 1.000
AWBS2BC3 2.000 6.500 2.750 0.375 0.563 .500 x 1.000
AWBS52BC3 2.500 6.500 3.125 0.375 0.563 .500 x 1.000
AWBS3BC3 3.000 6.500 3.625 0.375 0.563 .500 x 1.000
AWBS72BC3 3.500 6.500 4.000 0.375 0.563 .500 x 1.000
AWBS4BC3 4.000 6.500 4.500 0.375 0.563 .500 x 1.000
AWBS5BC3 5.000 6.500 5.000 0.375 0.563 .500 x 1.000
AWBS6BC3 6.000 6.500 5.500 0.375 0.563 .500 x 1.000



 5” BOLT CIRCLE BASES
CATALOG
NUMBER		 I.P.S.
SIZE		 DIMENSIONS (INCHES)
AWBS12BC5 0.500 9.500 2.250 0.500 0.688 .625 x 1.250
AWBS34BC5 0.750 9.500 2.250 0.500 0.688 .625 x 1.250
AWBS1BC5 1.000 9.500 2.250 0.500 0.688 .625 x 1.250
AWBS54BC5 1.250 9.500 2.375 0.500 0.688 .625 x 1.250
AWBS32BC5 1.500 9.500 2.500 0.500 0.688 .625 x 1.250
AWBS2BC5 2.000 9.500 2.750 0.500 0.688 .625 x 1.250
AWBS52BC5 2.500 9.500 3.125 0.500 0.688 .625 x 1.250
AWBS3BC5 3.000 9.500 3.625 0.500 0.688 .625 x 1.250
AWBS72BC5 3.500 9.500 4.000 0.500 0.688 .625 x 1.250
AWBS4BC5 4.000 9.500 4.500 0.500 0.688 .625 x 1.250
AWBS5BC5 5.000 9.500 5.000 0.500 0.688 .625 x 1.250
AWBS6BC5 6.000 9.500 5.500 0.500 0.688 .625 x 1.250
