ACSS /AW ASTM- ALUMINUM CONDUCTOR STEEL SUPPORTED/AW CORE

Category: ACSS
Hits: 1506

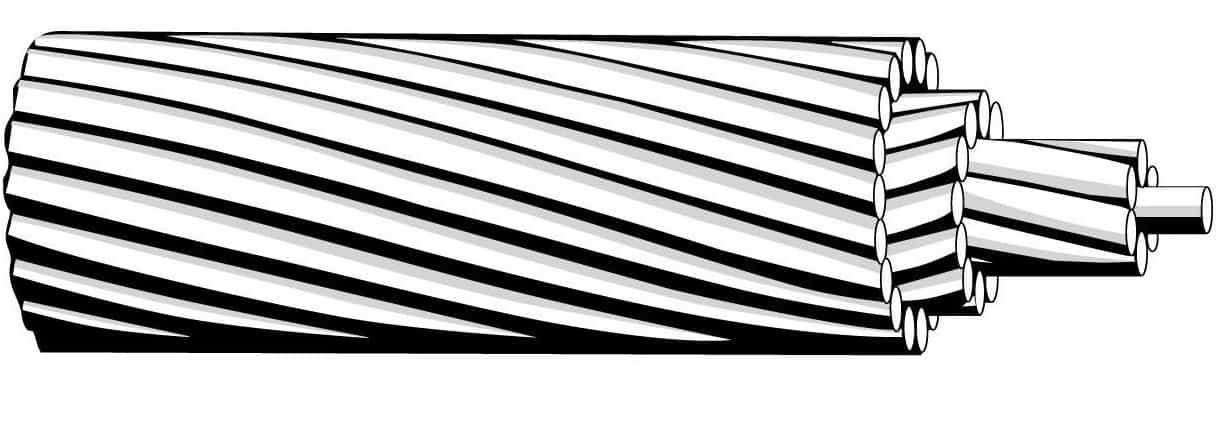

ACSS /AW - ALUMINUM CONDUCTOR STEEL SUPPORTED/AW CORE

Produt Description

ACSS/AW is a composite concentric-Lay-stranded conductor. Aluminum-clad steel strands, either AW2 (normal strength)or AW3(high strength),from the central core of the conductor with one or more layers of aluminum 1350-0 wire stranded around it. The aluminum-clad steel core carries most or all of the  mechanical load of the conductor due to the "0" (fully annealed or soft) temper aluminum. The steel core wires are protected from corrosion by an aluminum coating.

Application

ACSS/AW is used for overhead distribution and transmission lines. it is desined to operate continuously at elevated temperatures up to 250̊ C without loss of strength; it sags less under emergency electrical loadings than ACSR/AW; it is self-damping if prestretched during installation; and its final sags are not affected by long term creep of applications requiring increased current with existing tensions and clearances, new line applications where  structures can be economized because of reduced conductor sag, new line applications requiring high emergency loadings, and lines where aeolian vibration is a problem. ACSS/AW offers strength characteristics similar to ACSS, along with slightly greater ampacity and resistance to corrosion due to the aluminum-cladding of the steel core wires.

Specification Data

ASTM B-609    Aluminum 1350 round wire, annealed intermediate tempers

ASTM B-502    Aluminum-clad steel core wire for aluminum conductors,  aluminum-clad steel reinforced, either AW2(normal strength) or AW3 (high strength).

ASTM B-856    Concentric-lay stranded aluminum conductors, coated steel supported (ACSS).

Product Data

Code Word Size (kcmil) Stranding (Al / St) Diameter  Weight  Rated Strength  Resistance  Ampacity at 200°C (AMPS)
Individual Wires Steel Core Complete Cable Al Steel Total Ohms/1000 ft. Ohms/km
AL Steel lbs/ 1000ft kg /km lbs/ 1000ft kg /km lbs/ 1000ft kg /km lbs. kn DC @20°c AC @75°C DC @20°c AC @75°C
ins mm ins mm ins mm ins mm
Junco/ACSS/AW 266.8 30/7 0.094 2.40 0.09 2.40 0.28 7.19 0.66 16.76 252 375 140 208 392 583 11200 49.84 0.059 0.072 0.193 0.237 841
Ostrich/ACSS/AW 300 26/7 0.107 2.73 0.08 2.12 0.25 6.37 0.68 17.27 283 421 110 164 393 585 9360 41.65 0.053 0.066 0.175 0.215 891
Linnet/ACSS/AW 336.4 26/7 0.114 2.89 0.09 2.25 0.27 6.74 0.72 18.29 317 472 123 183 440 655 10500 46.73 0.048 0.059 0.156 0.192 960
Oriole/ACSS/AW 336.4 30/7 0.106 2.69 0.11 2.69 0.32 8.07 0.74 18.82 318 473 177 263 494 735 14200 63.19 0.047 0.057 0.153 0.188 979
Brant/ACSS/AW 397.5 24/7 0.129 3.27 0.09 2.18 0.26 6.54 0.77 19.61 374 557 116 173 490 729 10400 46.28 0.041 0.050 0.133 0.164 1061
Ibis/ACSS/AW 397.5 26/7 0.124 3.14 0.1 2.44 0.29 7.33 0.78 19.89 374 557 146 217 520 774 12400 55.18 0.040 0.050 0.132 0.163 1071
Lark/ACSS/AW 397.5 30/7 0.115 2.92 0.12 2.92 0.35 8.77 0.81 20.47 375 558 209 311 584 869 16700 74.32 0.040 0.049 0.130 0.159 1092
Flicker/ACSS/AW 477 24/7 0.141 3.58 0.09 2.39 0.28 7.16 0.85 21.49 449 668 139 207 589 876 12500 55.63 0.034 0.042 0.111 0.137 1195
Hawk/ACSS/AW 477 26/7 0.135 3.44 0.11 2.67 0.32 8.03 0.86 21.79 449 668 175 260 624 929 14900 66.31 0.034 0.041 0.110 0.135 1207
Hen/ACSS/AW 477 30/7 0.126 3.20 0.13 3.20 0.38 9.61 0.88 22.43 450 670 251 373 701 1043 20100 89.45 0.033 0.041 0.108 0.133 1231
Parakeet/ACSS/AW 556.5 24/7 0.152 3.87 0.1 2.58 0.3 7.73 0.91 23.22 524 780 163 243 687 1022 14600 64.97 0.029 0.036 0.095 0.118 1323
Dove/ACSS/AW 556.5 26/7 0.146 3.72 0.11 2.89 0.34 8.67 0.93 23.55 524 780 204 304 728 1083 17500 77.88 0.029 0.036 0.094 0.116 1336
Eagle/ACSS/AW 556.5 30/7 0.136 3.46 0.14 3.46 0.41 10.38 0.95 24.21 525 781 293 436 818 1217 22900 101.91 0.028 0.035 0.092 0.114 1362
Peacock/ACSS/AW 605 24/7 0.159 4.03 0.11 2.69 0.32 8.06 0.95 24.21 570 848 177 263 746 1110 15900 70.76 0.027 0.033 0.088 0.108 1397
Squab/ACSS/AW 605 26/7 0.153 3.87 0.12 3.01 0.36 9.04 0.97 24.54 570 848 222 330 792 1178 19000 84.55 0.027 0.033 0.087 0.107 1411
Wood Duck/ACSS/AW 605 30/7 0.142 3.61 0.14 3.61 0.43 10.82 0.99 25.25 571 850 318 473 889 1323 24400 108.58 0.026 0.032 0.085 0.105 1439
Teal/ACSS/AW 605 30/19 0.142 3.61 0.09 2.16 0.43 10.82 0.99 25.25 571 850 311 463 883 1314 25000 111.25 0.026 0.032 0.085 0.105 1438
Rook/ACSS/AW 636 24/7 0.163 4.14 0.11 2.76 0.33 8.27 0.98 24.82 599 891 186 277 785 1168 16700 74.32 0.026 0.031 0.084 0.103 1444
Grosbeak/ACSS/AW 636 26/7 0.156 3.97 0.12 3.09 0.36 9.27 0.99 25.17 599 891 233 347 832 1238 19900 88.56 0.025 0.031 0.083 0.102 1458
Scoter/ACSS/AW 636 30/7 0.146 3.70 0.15 3.70 0.44 11.09 1.02 25.88 600 893 334 497 935 1391 25100 111.70 0.025 0.031 0.081 0.100 1487
Egret/ACSS/AW 636 30/19 0.146 3.70 0.09 2.22 0.44 11.09 1.02 25.88 600 893 327 487 928 1381 26300 117.04 0.025 0.031 0.081 0.100 1486
Flamingo/ACSS/AW 666.6 24/7 0.167 4.23 0.11 2.82 0.33 8.47 1 25.40 628 934 195 290 823 1225 17500 77.88 0.024 0.030 0.080 0.098 1489
Gannet/ACSS/AW 666.6 26/7 0.16 4.07 0.12 3.16 0.37 9.49 1.01 25.76 628 934 245 365 872 1298 20900 93.01 0.024 0.030 0.079 0.097 1504
Stilt/ACSS/AW 715.5 24/7 0.173 4.39 0.12 2.92 0.35 8.77 1.04 26.31 674 1003 209 311 883 1314 18800 83.66 0.023 0.028 0.074 0.092 1559
Starling/ACSS/AW 715.5 26/7 0.166 4.21 0.13 3.28 0.39 9.83 1.05 26.70 674 1003 263 391 936 1393 22000 97.90 0.022 0.028 0.073 0.091 1576
Redwing/ACSS/AW 715.5 30/19 0.154 3.92 0.09 2.35 0.46 11.77 1.08 27.46 676 1006 368 548 1044 1553 29500 131.28 0.022 0.027 0.072 0.089 1605
Cuckoo/ACSS/AW 795 24/7 0.182 4.62 0.12 3.08 0.36 9.25 1.09 27.74 749 1115 232 345 981 1460 20900 93.01 0.020 0.025 0.067 0.083 1671
Drake/ACSS/AW 795 26/7 0.175 4.44 0.14 3.45 0.41 10.36 1.11 28.12 749 1115 292 434 1040 1548 24400 108.58 0.020 0.025 0.066 0.082 1688
Macaw/ACSS/AW 795 42/7 0.138 3.50 0.08 1.94 0.23 5.82 1.06 26.80 749 1115 92 137 841 1251 11400 50.73 0.021 0.026 0.069 0.085 1630
Tern/ACSS/AW 795 45/7 0.133 3.38 0.09 2.25 0.27 6.75 1.06 27.00 749 1115 124 185 873 1299 13500 60.08 0.021 0.026 0.068 0.085 1620
Condor/ACSS/AW 795 54/7 0.121 3.08 0.12 3.08 0.36 9.25 1.09 27.74 749 1115 232 345 981 1460 15800 70.31 0.020 0.026 0.067 0.085 1639
Mallard/ACSS/AW 795 30/19 0.163 4.14 0.1 2.48 0.49 12.41 1.14 28.93 751 1117 409 609 1160 1726 32900 146.41 0.020 0.025 0.065 0.080 1721
Ruddy/ACSS/AW 900 45/7 0.141 3.59 0.09 2.40 0.28 7.18 1.13 28.73 848 1262 140 208 988 1470 15300 68.09 0.018 0.023 0.060 0.075 1767
Canary/ACSS/AW 900 54/7 0.129 3.28 0.13 3.28 0.39 9.84 1.16 29.51 848 1262 263 391 1111 1653 23200 103.24 0.018 0.023 0.059 0.075 1779
Rail/ACSS/AW 954 45/7 0.146 3.70 0.1 2.47 0.29 7.40 1.17 29.59 899 1338 149 222 1047 1558 16200 72.09 0.017 0.022 0.057 0.072 1836
Towhee/ACSS/AW 954 48/7 0.141 3.58 0.11 2.79 0.33 8.36 1.18 29.85 899 1338 190 283 1088 1619 19000 84.55 0.017 0.021 0.056 0.070 1858
Cardinal/ACSS/AW 954 54/7 0.133 3.38 0.13 3.38 0.4 10.13 1.2 30.38 899 1338 279 415 1177 1751 24600 109.47 0.017 0.022 0.056 0.071 1848
Canvasback/ACSS/AW 954 30/19 0.178 4.53 0.11 2.72 0.54 13.59 1.25 31.70 901 1341 491 731 1392 2071 39400 175.33 0.017 0.021 0.054 0.067 1939
Snowbird/ACSS/AW 1033.5 42/7 0.157 3.99 0.09 2.21 0.26 6.64 1.2 30.56 973 1448 120 179 1093 1626 14800 65.86 0.016 0.020 0.053 0.066 1934
Curlew/ACSS/AW 1033.5 54/7 0.138 3.51 0.14 3.51 0.42 10.54 1.25 31.62 973 1448 302 449 1275 1897 26100 116.15 0.016 0.020 0.051 0.066 1948
Bluejay/ACSS/AW 1113 45/7 0.157 4.00 0.1 2.66 0.31 7.99 1.26 31.95 1048 1559 173 257 1222 1818 18900 84.11 0.015 0.009 0.049 0.029 2031
Finch/ACSS/AW 1113 54/19 0.144 3.65 0.09 2.19 0.43 10.94 1.29 32.82 1053 1567 318 473 1372 2042 28800 128.16 0.015 0.019 0.048 0.062 2040
Bunting/ACSS/AW 1192.5 45/7 0.163 4.14 0.11 2.76 0.33 8.27 1.3 33.07 1123 1671 186 277 1309 1948 20300 90.34 0.014 0.018 0.045 0.058 2124
Grackle/ACSS/AW 1192.5 54/19 0.149 3.77 0.09 2.27 0.45 11.32 1.34 33.96 1129 1680 341 507 1470 2187 30800 137.06 0.014 0.018 0.045 0.058 2135
Bittern/ACSS/AW 1272 45/7 0.168 4.27 0.11 2.85 0.34 8.54 1.35 34.16 1198 1783 198 295 1396 2077 21600 96.12 0.013 0.017 0.043 0.054 2215
Pheasant/ACSS/AW 1272 54/19 0.154 3.90 0.09 2.34 0.46 11.69 1.38 35.08 1204 1792 364 542 1568 2333 32800 145.96 0.013 0.017 0.042 0.054 2227
Dipper/ACSS/AW 1351 45/7 0.173 4.40 0.12 2.93 0.35 8.80 1.39 35.20 1272 1893 210 312 1483 2207 23000 102.35 0.012 0.016 0.040 0.051 2304
Martin/ACSS/AW 1351 54/19 0.158 4.02 0.09 2.41 0.47 12.05 1.42 36.17 1279 1903 386 574 1665 2478 34900 155.31 0.012 0.016 0.039 0.051 2307
Bobolink/ACSS/AW 1431 45/7 0.178 4.53 0.12 3.02 0.36 9.06 1.43 36.25 1348 2006 223 332 1571 2338 24300 108.14 0.012 0.015 0.038 0.049 2391
Plover/ACSS/AW 1431 54/19 0.163 4.14 0.1 2.48 0.49 12.41 1.47 37.21 1354 2015 409 609 1764 2625 36900 164.21 0.011 0.015 0.037 0.049 2405
Nuthatch/ACSS/AW 1510 45/7 0.183 4.65 0.12 3.10 0.37 9.31 1.47 37.21 1422 2116 235 350 1657 2466 25700 114.37 0.011 0.014 0.036 0.046 2476
Parrot/ACSS/AW 1510 54/19 0.167 4.25 0.1 2.55 0.5 12.74 1.51 38.23 1429 2126 432 643 1861 2769 38900 173.11 0.011 0.014 0.035 0.046 2491
Lapwing/ACSS/AW 1590 45/7 0.188 4.78 0.13 3.18 0.38 9.55 1.5 38.20 1498 2229 248 369 1745 2597 27000 120.15 0.010 0.013 0.034 0.044 2560
Falcon/ACSS/AW 1590 54/19 0.172 4.36 0.1 2.62 0.51 13.08 1.54 39.22 1505 2239 455 677 1960 2916 41100 182.90 0.010 0.013 0.033 0.044 2576
Chukar/ACSS/AW 1780 84/19 0.146 3.70 0.09 2.22 0.44 11.09 1.6 40.67 1685 2507 327 487 2012 2994 33600 149.52 0.009 0.120 0.031 0.394 2772
Mockingbird/ACSS/AW 2034.5 72/7 0.168 4.27 0.11 2.85 0.34 8.54 1.68 42.70 1926 2866 198 295 2124 3161 26500 117.93 0.008 0.011 0.027 0.036 2972
Roadrunner/ACSS/AW 2057 76/19 0.165 4.18 0.08 1.95 0.38 9.75 1.7 43.18 1947 2897 253 376 2200 3274 30300 134.84 0.008 0.011 0.027 0.035 3007
Bluebird/ACSS/AW 2156 84/19 0.16 4.07 0.1 2.44 0.48 12.21 1.76 44.75 2041 3037 396 589 2437 3626 40700 181.12 0.008 0.010 0.025 0.033 3130
Kiwi/ACSS/AW 2167 72/7 0.174 4.41 0.12 2.94 0.35 8.81 1.74 44.07 2051 3052 211 314 2262 3366 28200 125.49 0.008 0.010 0.025 0.034 3092
Thrasher/ACSS/AW 2312 76/19 0.174 4.43 0.08 2.07 0.41 10.34 1.8 45.77 2188 3256 284 423 2472 3678 34100 151.75 0.007 0.010 0.024 0.032 3235
Joree/ACSS/AW 2515 76/19 0.182 4.62 0.08 2.16 0.42 10.78 1.88 47.75 2380 3541 309 460 2689 4001 37100 165.10 0.007 0.009 0.022 0.030 3407



+Data based on a nominal cable manufactured in accordance with ASTM B 856.

++Resistance and ampacity based on an aluminum conductivity of 63% IACS at 20°C, and an aluminum-clad steel conductivity of 20.3%

+++Ampacity based on a 200°C conductor temperature, 25°C ambient temperature, 2ft/sec wind, in sun, with emissivity of 0.5 and a coefficient of solar absorption of 0.5 at sea level.

++++Rate strengths based on aluminum-clad steel core wire in accordance with ASTM B 502.

*Manufactured with pride in DeKalb, IL USA.





Aluminum Conductor Steel Supported-ACSS(ASTM B856)

Category: ACSS
Hits: 1424



 Code Name    Stranding    Cross section (MCM)    Diameter                          Mass    Outside Diameter  Rated strength
(by type of steel core)
 Al/Steel    Al    Steel    lb/1000 ft kg/km  ACSS/HS ACSS/MS    ACSS/GA ACSS/MA    ACSS/AW
in mm in mm in mm kip kN kip kN kip kN
 Thrasher    76/19   2312 0.1744 4.430 0.081 2.068 2523 3754.22 1.802 45.77 38.1 169.4764 35.6 158.35592 34.1 151.68362
 Kiwi    72/7   2167 0.1735 4.407 0.116 2.939 2301 3423.89 1.735 44.07 30.8 137.0046 29 128.9978 28.2 125.43924
 Bluebird    84/19   2156 0.1602 4.069 0.096 2.441 2508 3731.90 1.762 44.75 45.5 202.3931 42.1 187.26922 40.7 181.04174
 Chukar    84/19   1780 0.1456 3.698 0.087 2.220 2072 3083.14 1.602 40.69 38.2 169.9212 35.4 157.46628 33.6 149.45952
 Falcon    54/19   1590 0.1716 4.359 0.103 2.616 2042 3038.50 1.545 39.24 46.6 207.2861 42.6 189.49332 41.1 182.82102
 Lapwing    45/7   1590 0.188 4.775 0.125 3.183 1790 2663.52 1.504 38.20 29.6 131.6667 27.9 124.10478 27 120.1014
 Parrot    54/19   1510 0.1672 4.247 0.1 2.548 1938 2883.74 1.505 38.23 44.2 196.6104 40.4 179.70728 38.9 173.03498
 Nuthatch    45/7   1510 0.1832 4.653 0.122 3.101 1700 2529.60 1.466 37.24 28.1 124.9944 26.5 117.8773 25.7 114.31874
 Plover    54/19   1431 0.1628 4.135 0.098 2.482 1838 2734.94 1.465 37.21 41.9 186.3796 38.4 170.81088 36.9 164.13858
 Bobolink    45/7   1431 0.1783 4.529 0.119 3.020 1611 2397.17 1.427 36.25 27 120.1014 25.1 111.64982 24.3 108.09126
 Martin    54/19   1351 0.1582 4.018 0.095 2.410 1735 2581.68 1.424 36.17 39.6 176.1487 36.2 161.02484 34.9 155.24218
 Dipper    45/7   1351 0.1733 4.402 0.116 2.934 1521 2263.25 1.386 35.20 25.5 113.4291 23.7 105.42234 23 102.3086
 Pheasant    54/19   1272 0.1535 3.899 0.092 2.339 1634 2431.39 1.382 35.10 37.3 165.9179 34.1 151.68362 32.8 145.90096
 Bittern    45/7   1272 0.1681 4.270 0.112 2.847 1432 2130.82 1.345 34.16 24 106.7568 22.3 99.19486 21.6 96.08112
 Grackle    54/19   1192.5 0.1486 3.774 0.089 2.266 1531 2278.13 1.338 33.99 35.5 157.9111 32.6 145.01132 30.8 137.00456
 Bunting    45/7   1192.5 0.1628 4.135 0.109 2.756 1342 1996.90 1.302 33.07 23.5 104.5327 21.4 95.19148 20.8 92.52256
 Finch    54/19   1113 0.1436 3.647 0.086 2.189 1430 2127.84 1.293 32.84 33.2 147.6802 30.4 135.22528 28.8 128.10816
 Bluejay    45/7   1113 0.1573 3.995 0.105 2.664 1254 1865.95 1.259 31.98 21.1 93.85702 19.5 86.7399 18.9 84.07098
 Curlew    54/7   1033.5 0.1383 3.513 0.138 3.513 1329 1977.55 1.245 31.62 30.3 134.7805 28.2 125.43924 26.1 116.09802
 Ortolan    45/7   1033.5 0.1515 3.848 0.101 2.565 1163 1730.54 1.212 30.78 19.5 86.7399 18.1 80.51242 17.6 78.28832
 Cardinal    54/7   954 0.1329 3.376 0.133 3.376 1227.1 1825.92 1.196 30.38 28 124.5496 26 115.6532 24.6 109.42572
 Rail    45/7   954 0.1456 3.698 0.097 2.466 1074 1598.11 1.165 29.59 18 80.0676 16.7 74.28494 16.2 72.06084
 Canary    54/7   900 0.1291 3.279 0.129 3.279 1158 1723.10 1.162 29.51 26.4 117.4325 24.6 109.42572 23.2 103.19824
 Ruddy    45/7   900 0.1414 3.592 0.094 2.395 1013 1507.34 1.131 28.73 17 75.6194 15.8 70.28156 15.3 68.05746
 Mallard    30/19   795 0.1628 4.135 0.098 2.482 1233.9 1836.04 1.14 28.96 37.9 168.5868 34.3 152.57326 32.9 146.34578
 Condor    54/7   795 0.1213 3.081 0.121 3.081 1022 1520.74 1.092 27.74 23.3 103.6431 21.7 96.52594 20.9 92.96738
 Tern    45/7   795 0.1329 3.376 0.089 2.250 895 1331.76 1.063 27.00 15.2 67.61264 14.2 63.16444 13.5 60.0507
 Drake    26/7   795 0.1749 4.442 0.136 3.454 1093 1626.38 1.108 28.14 28 124.5496 25.9 115.20838 24.4 108.53608
 Cuckoo    24/7   795 0.182 4.623 0.121 3.081 1023 1522.22 1.092 27.74 23.3 103.6431 21.7 96.52594 20.9 92.96738
 Redwing    30/19   715 0.1544 3.922 0.093 2.352 1109.3 1650.64 1.081 27.46 34 151.2388 30.8 137.00456 29.5 131.2219
 Starling    26/7   715.5 0.1659 4.214 0.129 3.277 983.7 1463.75 1.051 26.70 25.2 112.0946 23.3 103.64306 22 97.8604
 Stilt    24/7   715.5 0.1727 4.387 0.115 2.924 921 1370.45 1.036 26.31 21.3 94.74666 19.5 86.7399 18.8 83.62616
 Gannet    26/7   666.6 0.1601 4.067 0.125 3.162 916.2 1363.31 1.014 25.76 23.4 104.0879 21.7 96.52594 20.9 92.96738
 Flamingo    24/7   666.6 0.1667 4.234 0.111 2.822 857.9 1276.56 1 25.40 19.9 88.51918 18.2 80.95724 17.5 77.8435
 Egret    30/19   636 0.1456 3.698 0.087 2.220 987.2 1468.95 1.019 25.88 30.9 137.4494 28 124.5496 26.3 116.98766
 Scoter    30/7   636 0.1456 3.698 0.146 3.698 995.1 1480.71 1.019 25.88 29.7 132.1115 27.4 121.88068 25.1 111.64982
 Grosbeak    26/7   636 0.1564 3.973 0.122 3.089 874.2 1300.81 0.99 25.15 22.4 99.63968 20.7 92.07774 19.9 88.51918
 Rook    24/7   636 0.1628 4.135 0.109 2.756 818.2 1217.48 0.977 24.82 19 84.5158 17.3 76.95386 16.7 74.28494
 Teal    30/19   605 0.142 3.607 0.085 2.164 938.6 1396.64 0.994 25.25 29.3 130.3323 26.6 118.32212 25 111.205
 Wood Duck    30/7   605 0.142 3.607 0.142 3.607 946.5 1408.39 0.994 25.25 28.3 125.8841 26 115.6532 24.4 108.53608
 Squab    26/7   605 0.1525 3.874 0.119 3.012 831.3 1236.97 0.966 24.54 21.3 94.74666 19.7 87.62954 19 84.5158
 Peacock    24/7   605 0.1588 4.034 0.106 2.690 778.8 1158.85 0.953 24.21 18.1 80.51242 16.5 73.3953 15.9 70.72638
 Eagle    30/7   556.5 0.1362 3.459 0.136 3.459 870.7 1295.60 0.953 24.21 26.5 117.8773 24.5 108.9809 22.9 101.86378
 Dove    26/7   556.5 0.1463 3.716 0.114 2.891 765.2 1138.62 0.927 23.55 19.9 88.51918 18.2 80.95724 17.5 77.8435
 Parakeet    24/7   556.5 0.1523 3.868 0.102 2.578 716.1 1065.56 0.914 23.22 16.6 73.84012 15.2 67.61264 14.6 64.94372
 Hen    30/7   477 0.1261 3.203 0.126 3.203 746.4 1110.64 0.883 22.43 22.7 100.9741 21 93.4122 20.1 89.40882
 Hawk    26/7   477 0.1354 3.439 0.105 2.675 655.3 975.09 0.858 21.79 17.1 76.06422 15.6 69.39192 14.9 66.27818
 Flicker    24/7   477 0.141 3.581 0.094 2.388 613.9 913.48 0.846 21.49 14.2 63.16444 13 57.8266 12.5 55.6025
 Lark    30/7   397.5 0.1151 2.924 0.115 2.924 621.8 925.24 0.806 20.47 19.3 85.85026 17.5 77.8435 16.7 74.28494
 Ibis    26/7   397.5 0.1236 3.139 0.096 2.441 546 812.45 0.783 19.89 14.2 63.16444 13 57.8266 12.4 55.15768
 Brant    24/7   397.5 0.1287 3.269 0.086 2.179 511.4 760.96 0.772 19.61 12.1 53.82322 11 48.9302 10.4 46.26128
 Oriole    30/7   336.4 0.1059 2.690 0.106 2.690 526.4 783.28 0.741 18.82 16.3 72.50566 14.8 65.83336 14.2 63.16444
 Linnet    26/7   336.4 0.1137 2.888 0.088 2.245 462 687.46 0.72 18.29 12.3 54.71286 11.2 49.81984 10.5 46.7061
 Ostrich    26/7   300 0.1074 2.728 0.084 2.121 412.2 613.35 0.68 17.27 10.9 48.48538 10 44.482 9.4 41.81308
 Partridge    26/7   266.8 0.1013 2.573 0.079 2.002 366.9 545.95 0.642 16.31 9.73 43.28099 8.88 39.500016 8.37 37.231434
 Cochin    12/7   211.3 0.1327 3.371 0.133 3.371 526.8 783.88 0.664 16.87 23.1 102.7534 21.2 94.30184 19.7 87.62954
 Brahma    16/19   203.2 0.1127 2.863 0.098 2.482 674.6 1003.80 0.714 18.14 34.1 151.6836 30.5 135.6701 29.1 129.44262
 Dorking    12/7   190.8 0.1261 3.203 0.126 0.1261 475.7 707.84 0.631 16.03 20.9 92.96738 19.1 84.96062 18.3 81.40206

ACSS-Aluminum conductor steel supported - ASTM

Category: ACSS
Hits: 1380

ACSS-Aluminum Conductor Steel Supported

Product Description

ACSS is a concentric-lay stranded composite conductor made up of a core of galvanized steel strands and one or more layers of annealed or soft 1350-0 Aluminum. The steel core wire is Class A galvanized zinc-coated steel which, due to the annealed or soft temper Aluminum, carries most or all of the mechanical load of the conductor. Upon request the steel core is available in High strength.

Application

Aluminum conductor steel supported (ACSS) cable is used for overhead transmission lines. ACSS is designed to operate continuously at higher temperatures up to 250ᵒC without loss of strength, which allows for a significant increase in current carrying capacity over ACSR. ACSS is self-damping, sags less than ACSR under emergency electrical loadings, and its final sags are not affected by the long term creep of aluminum. These advantages make ACSS useful in new line applications where structures can be optimized due to the reduced conductor sag or where high emergency loads may be required; or in lines where Aeolian vibration is a problem. Existing lines can be re-conductored using ACSS to allow for increased current using the existing clearances and tensions.

Specification Data

ASTM B-609 Aluminum 1350 round wire, annealed and intermediate tempers, for electrical purposes
ASTM B-498 Zinc-coated (galvanized) steel core wire
ASTM B-856 Concentric lay stranded aluminum conductors, coated steel supported (ACSS)



Catalog
Number		 Size (kcmil) Stranding (Al / St) Diameter  Weight  Rated Strength  Resistance  Ampacity at 200°C (AMPS)
Individual Wires Steel Core Complete Cable Al Steel Total Ohms/1000 ft. Ohms/km
AL Steel lbs/  1000ft kg /km lbs/  1000ft kg /km lbs/  1000ft kg /km lbs. kn DC @20°c AC @75°C DC @20°c AC @75°C
in mm ins mm in mm in mm
ACSS-PARTRIDGE 266.8 26/7 0.1013 2.57 0.0788 2.00 0.2363 6.00 0.642 16.31 251.3 374 115.5 172 366.8 546 8880 39.52 0.0619 0.0761 0.2030 0.2496 812
ACSS-JUNCO 266.8 30/7 0.0943 2.40 0.0943 2.40 0.2829 7.19 0.66 16.76 251.9 375 165.5 246 417.4 621 11700 52.07 0.0615 0.0756 0.2017 0.2480 822
ACSS-OSTRICH 300 26/7 0.1074 2.73 0.0835 2.12 0.2506 6.37 0.68 17.27 282.6 421 129.9 193 412.4 614 10000 44.50 0.0551 0.0677 0.1807 0.2221 877
ACSS-LINNET 336.4 26/7 0.1137 2.89 0.0885 2.25 0.2654 6.74 0.72 18.29 316.8 471 145.7 217 462.5 688 11200 49.84 0.0491 0.0604 0.1610 0.1981 945
ACSS-ORIOLE 336.4 30/7 0.1059 2.69 0.1059 2.69 0.3177 8.07 0.741 18.82 317.6 473 208.7 311 526.3 783 14800 65.86 0.0488 0.06 0.1601 0.1968 957
ACSS-BRANT 397.5 24/7 0.1287 3.27 0.0858 2.18 0.2574 6.54 0.772 19.61 374.4 557 137 204 511.4 761 11000 48.95 0.0417 0.0514 0.1368 0.1686 1047
ACSS-IBIS 397.5 26/7 0.1236 3.14 0.0962 2.44 0.2885 7.33 0.783 19.89 374.4 557 172.1 256 546.5 813 13000 57.85 0.0416 0.0512 0.1364 0.1679 1054
ACSS-LARK 397.5 30/7 0.1151 2.92 0.1151 2.92 0.3453 8.77 0.806 20.47 375.3 558 246.5 367 621.9 925 17500 77.88 0.0413 0.0508 0.1355 0.1666 1068
ACSS-FLICKER 477 24/7 0.141 3.58 0.094 2.39 0.2819 7.16 0.846 21.49 449.3 669 164.4 245 613.6 913 13000 57.85 0.348 0.0429 1.1414 0.1407 1180
ACSS-HAWK 477 26/7 0.1354 3.44 0.1053 2.67 0.316 8.03 0.858 21.79 449.3 669 206.5 307 655.8 976 15600 69.42 0.0346 0.0427 0.1135 0.1401 1188
ACSS-HEN 477 30/7 0.1261 3.20 0.1261 3.20 0.3783 9.61 0.883 22.43 450.4 670 295.9 440 746.3 1110 21000 93.45 0.0344 0.0424 0.1128 0.1391 1204
ACSS-PARAKEET 556.5 24/7 0.1523 3.87 0.1015 2.58 0.3045 7.73 0.914 23.22 524.1 780 191.8 285 715.9 1065 15200 67.64 0.0298 0.0368 0.0977 0.1207 1306
ACSS-DOVE 556.5 26/7 0.1463 3.72 0.1138 2.89 0.3413 8.67 0.927 23.55 524.2 780 240.9 358 765.1 1138 18200 80.99 0.0297 0.0366 0.0974 0.1200 1315
ACSS-EAGLE 556.5 30/7 0.1362 3.46 0.1362 3.46 0.4086 10.38 0.953 24.21 525.4 782 345.2 514 870.6 1295 24500 109.03 0.0295 0.0363 0.0968 0.1191 1331
ACSS-PEACOCK 605 24/7 0.1588 4.03 0.1058 2.69 0.3175 8.06 0.953 24.21 569.8 848 205.5 306 778.3 1158 16500 73.43 0.0274 0.0339 0.0899 0.1112 1379
ACSS-SQUAB 605 26/7 0.1525 3.87 0.1186 3.01 0.3559 9.04 0.966 24.54 569.8 848 208.5 310 831.8 1238 19700 87.67 0.0273 0.0337 0.0895 0.1105 1389
ACSS-WOOD DUCK 605 30/7 0.142 3.61 0.142 3.61 0.426 10.82 0.994 25.25 571.2 850 375.3 558 946.5 1408 26000 115.70 0.0271 0.0334 0.0889 0.1096 1407
ACSS-TEAL 605 30/19 0.142 3.61 0.0852 2.16 0.426 10.82 0.994 25.25 571.2 850 367.4 547 938.6 1397 26600 118.37 0.0272 0.0335 0.0892 0.1099 1406
ACSS-ROOK 636 24/7 0.1628 4.14 0.1085 2.76 0.3256 8.27 0.977 24.82 599 891 219.2 326 818.2 1217 17300 76.99 0.0261 0.0322 0.0856 0.1056 1425
ACSS-GROSBEAK 636 26/7 0.1564 3.97 0.1216 3.09 0.3649 9.27 0.991 25.17 599 891 275.4 410 874.4 1301 20700 92.12 0.026 0.0321 0.0853 0.1053 1435
ACSS-SCOTER 636 30/7 0.1456 3.70 0.1456 3.70 0.4368 11.09 1.019 25.88 600.5 894 394.5 587 995 1481 27400 121.93 0.0258 0.0318 0.0846 0.1043 1454
ACSS-EGRET 636 30/19 0.1456 3.70 0.0874 2.22 0.4368 11.09 1.019 25.88 600.5 894 386.3 575 986.8 1468 28000 124.60 0.0258 0.0319 0.0846 0.1046 1453
ACSS-FLAMINGO 666.6 24/7 0.1667 4.23 0.1111 2.82 0.3333 8.47 1 25.40 627.9 934 229.7 342 857.6 1276 18200 80.99 0.0249 0.0308 0.0817 0.1010 1470
ACSS-GANNET 666.6 26/7 0.1601 4.07 0.1245 3.16 0.3736 9.49 1.014 25.76 627.8 934 288.6 429 916.4 1364 21700 96.57 0.0248 0.0306 0.0813 0.1004 1480
ACSS-STILT 715.5 24/7 0.1727 4.39 0.1151 2.92 0.3453 8.77 1.036 26.31 673.9 1003 246.5 367 920.5 1370 19500 86.78 0.0232 0.0287 0.0761 0.0941 1540
ACSS-STARLING 715.5 26/7 0.1659 4.21 0.129 3.28 0.3871 9.83 1.051 26.70 673.9 1003 309.8 461 983.7 1464 23300 103.69 0.0231 0.0286 0.0758 0.0938 1550
ACSS-REDWING 715.5 30/19 0.1544 3.92 0.0927 2.35 0.4633 11.77 1.081 27.46 675.6 1005 434.6 647 1110.1 1652 30800 137.06 0.023 0.0284 0.0754 0.0932 1570
ACSS-CUCKOO 795 24/7 0.182 4.62 0.1213 3.08 0.364 9.25 1.092 27.74 748.8 1114 274 408 1022.7 1522 21700 96.57 0.0209 0.0259 0.0686 0.0850 1650
ACSS-DRAKE 795 26/7 0.1749 4.44 0.136 3.45 0.408 10.36 1.107 28.12 748.8 1114 344.2 512 1093 1626 25900 115.26 0.0209 0.0257 0.0686 0.0843 1662
ACSS-MACAW 795 42/7 0.1376 3.50 0.0764 1.94 0.2293 5.82 1.055 26.80 748.8 1114 108.7 162 857.5 1276 11800 52.51 0.0211 0.0262 0.0692 0.0859 1621
ACSS-TERN 795 45/7 0.1329 3.38 0.0886 2.25 0.2658 6.75 1.063 27.00 748.8 1114 146.1 217 894.9 1332 14200 63.19 0.021 0.0263 0.0689 0.0863 1618
ACSS-CONDOR 795 54/7 0.1213 3.08 0.1213 3.08 0.364 9.25 1.092 27.74 748.8 1114 274 408 1022.7 1522 21700 96.57 0.0209 0.0266 0.0686 0.0872 1618
ACSS-MALLARD 795 30/19 0.1628 4.14 0.0977 2.48 0.4884 12.41 1.139 28.93 750.6 1117 482.8 718 1233.4 1835 34300 152.64 0.0207 0.0255 0.0679 0.0836 1683
ACSS-RUDDY 900 45/7 0.1414 3.59 0.0943 2.40 0.2828 7.18 1.131 28.73 847.7 1261 165.4 246 1013.1 1507 15800 70.31 0.0186 0.0233 0.0610 0.0764 1755
ACSS-CANARY 900 54/7 0.1291 3.28 0.1291 3.28 0.3873 9.84 1.162 29.51 847.7 1261 310.1 461 1157.8 1723 26400 117.48 0.0184 0.0236 0.0604 0.0774 1756
ACSS-REDBIRD 954 24/7 0.1994 5.06 0.1329 3.38 0.3987 10.13 1.196 30.38 898.5 1337 328.7 489 1227.3 1826 26000 115.70 0.0174 0.0217 0.0571 0.0712 1859
ACSS-RAIL 954 45/7 0.1456 3.70 0.0971 2.47 0.2912 7.40 1.165 29.59 898.5 1337 175.3 261 1073.9 1598 16700 74.32 0.0175 0.022 0.0574 0.0722 1824
ACSS-TOWHEE 954 48/7 0.141 3.58 0.1097 2.79 0.329 8.36 1.175 29.85 898.5 1337 223.7 333 1122.3 1670 19700 87.67 0.0175 0.0218 0.0574 0.0715 1842
ACSS-CARDINAL 954 54/7 0.1329 3.38 0.1329 3.38 0.3987 10.13 1.196 30.38 898.6 1337 328.7 489 1227.3 1826 26000 115.70 0.0174 0.0223 0.0571 0.0731 1825
ACSS-CANVASBACK 954 30/19 0.1783 4.53 0.107 2.72 0.535 13.59 1.248 31.70 900.7 1340 579.4 862 1480.1 2202 41100 182.90 0.0172 0.0214 0.0564 0.0702 1897
ACSS-SNOWBIRD 1033.5 42/7 0.1569 3.99 0.0871 2.21 0.2614 6.64 1.203 30.56 973.4 1448 141.3 210 1114.7 1659 15400 68.53 0.0162 0.0204 0.0531 0.0669 1924
ACSS-ORTOLAN 1033.5 45/7 0.1515 3.85 0.101 2.57 0.3031 7.70 1.212 30.78 973.4 1448 190 283 1163.4 1731 18100 80.55 0.0162 0.0204 0.0531 0.0669 1921
ACSS-CURFEW 1033.5 54/7 0.1383 3.51 0.1383 3.51 0.415 10.54 1.245 31.62 973.4 1448 356.2 530 1329.6 1978 28200 125.49 0.0161 0.0206 0.0528 0.0676 1924
ACSS-BLUEJAY 1113 45/7 0.1573 4.00 0.1048 2.66 0.3145 7.99 1.258 31.95 1048.3 1560 204.5 304 1252.8 1864 19500 86.78 0.015 0.019 0.0492 0.0623 2017
ACSS-FINCH 1113 54/19 0.1436 3.65 0.0861 2.19 0.4307 10.94 1.292 32.82 1053.4 1567 375.5 559 1428.9 2126 30400 135.28 0.015 0.0193 0.0492 0.0633 2015
ACSS-BUNTING 1192.5 45/7 0.1628 4.14 0.1085 2.76 0.3256 8.27 1.302 33.07 1123.2 1671 219.2 326 1342.4 1997 21400 95.23 0.014 0.0178 0.0459 0.0584 2110
ACSS-BITTERN 1272 45/7 0.1681 4.27 0.1121 2.85 0.3362 8.54 1.345 34.16 1198.1 1783 233.8 348 1431.9 2131 22300 99.24 0.0131 0.0167 0.0430 0.0548 2200
ACSS-PHEASANT 1272 54/19 0.1535 3.90 0.0921 2.34 0.4604 11.69 1.381 35.08 1203.9 1791 429.2 639 1633 2430 34100 151.75 0.0131 0.0169 0.0430 0.0554 2200
ACSS-DIPPER 1351 45/7 0.1733 4.40 0.1155 2.93 0.3465 8.80 1.386 35.20 1272.5 1893 248.3 369 1520.8 2263 23700 105.47 0.0124 0.0158 0.0407 0.0518 2289
ACSS-MARTIN 1351 54/19 0.1582 4.02 0.0949 2.41 0.4745 12.05 1.424 36.17 1278.7 1903 455.8 678 1734.5 2581 36200 161.09 0.0123 0.016 0.0403 0.0525 2288
ACSS-BOBOLINK 1431 45/7 0.1783 4.53 0.1189 3.02 0.3566 9.06 1.427 36.25 1347.8 2006 263 391 1610.8 2397 25100 111.70 0.0117 0.015 0.0384 0.0492 2375
ACSS-PLOVER 1431 54/19 0.1628 4.14 0.0977 2.48 0.4884 12.41 1.465 37.21 1354.4 2015 482.8 718 1837.2 2734 38400 170.88 0.0117 0.0151 0.0384 0.0495 2375
ACSS-NUTHATCH 1510 45/7 0.1832 4.65 0.1221 3.10 0.3664 9.31 1.465 37.21 1422.2 2116 277.5 413 1699.8 2529 26500 117.93 0.0111 0.0143 0.0364 0.0469 2459
ACSS-PARROT 1510 54/19 0.1672 4.25 0.1003 2.55 0.5017 12.74 1.505 38.23 1429.2 2127 509.5 758 1938.6 2885 40400 179.78 0.011 0.0144 0.0361 0.0472 2460
ACSS-RATITE 1590 42/7 0.1946 4.94 0.1081 2.75 0.3243 8.24 1.492 37.90 1497.6 2228 217.4 323 1715 2552 23400 104.13 0.0105 0.0136 0.0344 0.0446 2543
ACSS-LAPWING 1590 45/7 0.188 4.78 0.1253 3.18 0.3759 9.55 1.504 38.20 1497.6 2228 292.2 435 1789.8 2663 27900 124.16 0.0105 0.0136 0.0344 0.0446 2543
ACSS-FALCON 1590 54/19 0.1716 4.36 0.103 2.62 0.5148 13.08 1.544 39.22 1504.9 2239 536.5 798 2041.4 3038 42600 189.57 0.0105 0.0137 0.0344 0.0449 2545
ACSS-CHUKAR 1780 84/19 0.1456 3.70 0.0873 2.22 0.4367 11.09 1.601 40.67 1684.7 2507 386.1 575 2070.8 3081 35400 157.53 0.0094 0.0122 0.0308 0.0400 2751
ACSS-MOCKINGBIRD 2034.5 72/7 0.1681 4.27 1.1121 28.25 0.3362 8.54 1.681 42.70 1925.6 2865 233.7 348 2159.3 3213 27200 121.04 0.0083 0.011 0.0272 0.0361 2960
ACSS-ROADRUNNER 2057 76/19 0.1645 4.18 0.0768 1.95 0.3839 9.75 1.7 43.18 1946.9 2897 298.3 444 2245.2 3341 31700 141.07 0.0082 0.0108 0.0269 0.0354 2992
ACSS-BLUEBIRD 2156 84/19 0.1602 4.07 0.0961 2.44 0.4806 12.21 1.762 44.75 2040.6 3036 467.6 696 2508.2 3732 42100 187.35 0.0078 0.0103 0.0256 0.0338 3106
ACSS-KIWI 2167 72/7 0.1735 4.41 0.1157 2.94 0.347 8.81 1.735 44.07 2051 3052 248.9 370 2299.9 3422 29000 129.05 0.0078 0.0104 0.0256 0.0341 3080
ACSS-THRASHER 2312 76/19 0.1744 4.43 0.0814 2.07 0.407 10.34 1.802 45.77 2188.2 3256 335.3 499 2523.5 3755 35600 158.42 0.0073 0.0098 0.0239 0.0321 3218
ACSS-JOREE 2515 76/19 0.1819 4.62 0.0849 2.16 0.4245 10.78 1.88 47.75 2380.4 3542 364.7 543 2745.1 4085 38700 172.22 0.0067 0.0092 0.0220 0.0302 3390

+Data based on a nominal cable manufactured in accordance with ASTM B-856.

++Resistance and ampacity based on an aluminum conductivity of 63%, IACS at 20° C, and a steel conductivity of 8% IACS at 20°C.

+++Ampacity based on a 200°C conductor temperature, 25°C ambient temperature, 2 ft./sec. wind in sun with an emissivity of 0.5 and a coefficient of solar absorption of 0.5 at sea level.

*Manufactured with pride in DeKalb, IL USA.
